Loft Heumühlgasse

  • Location

    Vienna, Austria

  • Architect

    Mikado Architects

  • Client

    Private

  • Typologies

    • Building redevelopment
    • Office and residential

  • Planning

    2010

  • Execution

    2011 - 2012

  • Scopes

    • Inspection engineer acc. to WBO
    • LPH1 Basic analysis construction planning
    • LPH2 Preliminary draft
    • LPH3 Preliminary structural draft
    • LPH4 Submission planning
    • LPH5 Execution planning
    • LPH6 Collaboration in tender procedures
    • LPH7 Support of the construction work
    • LPH8 Collaboration in the local construction supervison

  • Materials

    • Brickwork & natural stone
    • Concrete

The expansion of a building located in a Viennese “protected zone” – comprising the construction of parking spaces on the basement level, the demolition and additions to the yard wing, and the addition of another three storeys – required a profound reinforcement of the building: brickwork strengthening, the installation of reinforced concrete discs, underpinning above the parking level and strengthening of the ceilings.

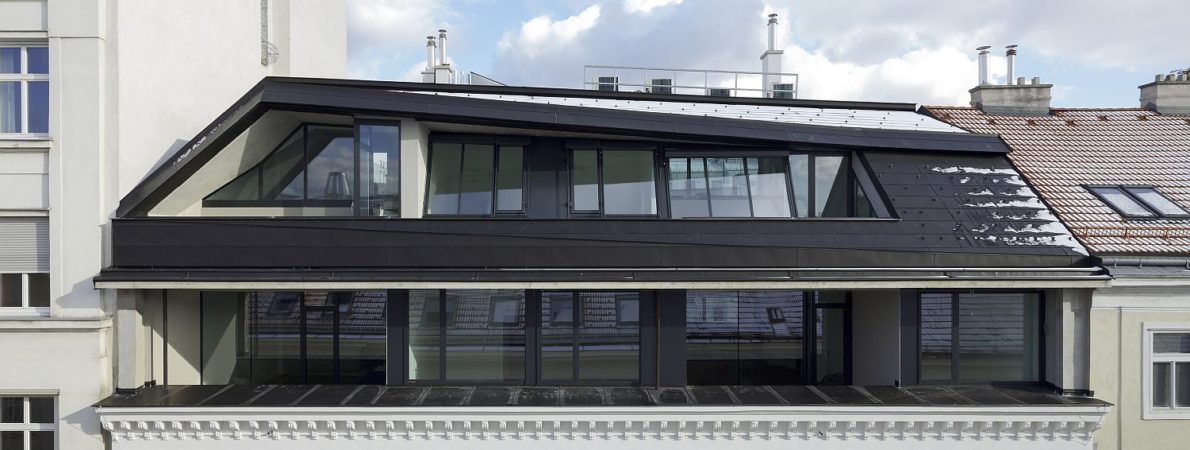

On top of the newly strengthened and now earthquake-resistant building, a stepped, complexly modelled loft extension was constructed, which is generously glazed and equipped with terraces facing the courtyard.

Pictures: © Bruno Klomfar, Werkraum
